IP SAN/NAS Storage

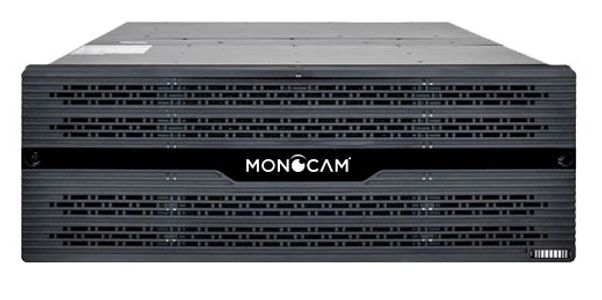

MC-NSC2X24

MC-NSC2X24

MC-NSC2X24


IP NAS High Capacity Storage Dual Controller Dual Power Supply

  • Recording Performance: Max 512ch/1024Mbps
  • Storage controller : Intel 64-bit multi-core processor
  • Memory : 16GB, up to 64 GB
  • Front-end Service Interface
    10-port 10/100/1000 Mbps Ethernet interface
    4-port 10/100/1000 Mbps Ethernet interface module(optional)
    2-port 10 GE SFP+ interface module(optional)
    4-port 10 GE SFP+ interface module (optional)
  • Back-end Expansion Interface4-port 4*12 Gbps Mini SAS HD
  • Host Connection Up to 1024
  • HDD 24 SATA/SAS/NL SAS interfaces
  • Disk Capacity 1 TB, 2 TB, 3 TB, 4 TB , 5 TB, 6 TB, 8 TB
  • RAID JBOD and RAID 0, 1, 10, 5, 50,6
    Dedicated hot-spare disk and global hot-spare disk
  • Maximum Number of Logic Resources 1024
  • Protocol Supported iSCSI
  • Alarm Feature Indicator alarm, beep alarm, mail alarm, SNMP Trap alarm, and short message alarm
  • Operating System Windows and Linux
  • Power Supply 2
  • Battery at least 2
  • Dimension(H ×W×D) Controller enclosure: 175.0mm×481.6mm×589.0mmPower ConsumptionController enclosure :< 550 W (fully configured)Power Supply100 V – 127 V/ 200 V – 240 V AC, 60 Hz/50 HzWeightController enclosure : Fully configured:< 42 kg
  • Authentication certificateCE, FCC,

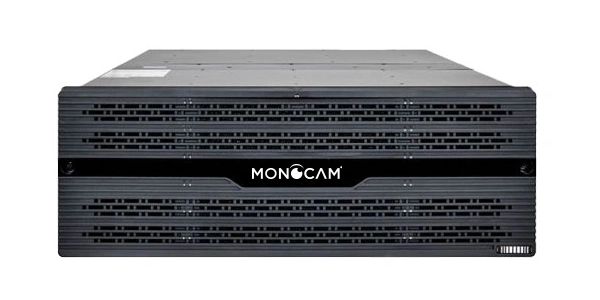

MC-DE2X24

MC-NSC2X24

MC-NSC2X24


High Capacity 24 SATA Dual Controller Disk Enclosure

  • High performance
    12Gbps SAS-3 technology provides superior performance experience
  • High density
    The innovative enclosure with 589mm depth and4U height that holds up to 24 disks, is space-saving and applicable to the standard rack-mounted scenarios
  • Redundant power supplies
    The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.
  • Power protection
    Disk powered on sequentially during system startup, protection from impulse current.
  • Multistage fan speed and energy saving.
    Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.
